Introduction to Crane and Heavy-Duty Hydraulic Cylinders

Hydraulic cylinders are vital mechanical actuators that use pressurized hydraulic fluid to generate linear force and motion. They play a central role in heavy-duty machinery and lifting equipment, converting hydraulic energy into mechanical output. These components are especially critical in applications where high force and precise movement are required, such as in cranes and industrial-grade equipment.

In crane systems and heavy-duty environments, the performance and reliability of hydraulic cylinders directly impact operational efficiency and safety. From lifting massive loads to stabilizing structural elements, the right hydraulic cylinder can determine the effectiveness of a system under extreme working conditions. Selecting a suitable cylinder is not just a matter of matching specifications—it involves evaluating factors such as pressure capacity, load demands, stroke length, mounting configuration, and environmental resilience.

This article provides an in-depth overview of hydraulic cylinders, focusing on their application in cranes and heavy-duty machinery. It also explores different cylinder types, their construction and functionality, key selection criteria, maintenance strategies, and emerging technologies shaping the future of hydraulic actuation.

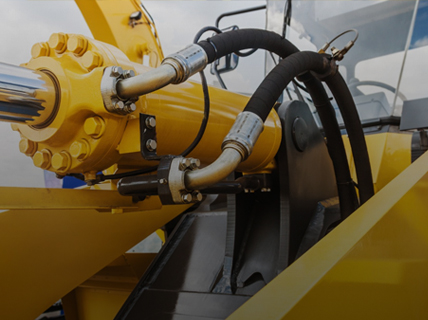

Understanding Hydraulic Cylinders

Hydraulic cylinders are mechanical devices that produce linear motion and force through the use of incompressible hydraulic fluid. They are integral to hydraulic systems used in industrial, construction, and mobile equipment.

What is a Hydraulic Cylinder?

At its core, a hydraulic cylinder consists of a cylindrical barrel, a piston connected to a rod, and end caps. The basic function involves pressurizing fluid on one side of the piston to create movement in the rod. The fluid’s pressure forces the piston to extend or retract, producing linear motion.

Basic Principles of Operation

Hydraulic cylinders operate based on Pascal’s Law, which states that pressure applied to a confined fluid is transmitted equally in all directions. When hydraulic fluid is pumped into one side of the cylinder, the pressure causes the piston to move. The force generated depends on the fluid pressure and the surface area of the piston.

Key Components of a Hydraulic Cylinder

• Cylinder Barrel : Houses the piston and retains the pressurized fluid.
• Piston and Piston Rod : Converts fluid pressure into mechanical motion.
• End Caps : Seal both ends of the barrel and support the rod and fluid flow.
• Seals and Gaskets : Prevent internal and external leakage.
• Ports : Allow hydraulic fluid to enter and exit the cylinder.

Types of Hydraulic Cylinders

Hydraulic cylinders come in several designs, each suited to specific operational needs and mechanical configurations. The choice of cylinder type affects the system’s overall performance, efficiency, and service life. Below are the most common types used in crane and heavy-duty machinery applications.

Single Acting Cylinders

Description and Function:
Single acting cylinders are designed to apply force in only one direction—typically extension. Hydraulic fluid enters through a single port, pushing the piston outward. The return stroke is usually achieved through an external force, such as gravity or a spring.

Advantages:

• Simple design and lower cost
• Fewer components lead to easier maintenance
• Well-suited for vertical operations like lifting

Disadvantages:

• Limited to one-directional force
• External return force needed
• Less control over the retraction motion

Typical Applications:

• Lifting platforms
• Dump truck beds
• Pressing equipment with gravity-assisted return

Double Acting Cylinders

Description and Function:
Double acting cylinders use hydraulic pressure to move the piston in both directions—extension and retraction. Two ports control fluid flow on either side of the piston.

Advantages:

• Provides force in both directions
• Greater control over movement
• Suitable for horizontal and vertical applications

Disadvantages:

• More complex than single acting cylinders
• Slightly higher cost
• Requires more precise control systems

Typical Applications:

• Mobile crane booms
• Construction equipment
• Industrial presses and clamping systems

Telescopic Cylinders

Description and Function:
Telescopic cylinders feature multiple nested stages or sleeves that extend sequentially. This design allows for a longer stroke within a compact retracted length.

Advantages:

• Space-efficient with extended reach
• Ideal for applications needing long extension
• Provides high lifting capabilities

Disadvantages:

• More complex construction
• Higher cost of repair and maintenance
• Susceptible to wear if not properly maintained

Typical Applications:

• Truck-mounted cranes
• Aerial lift platforms
• Agricultural trailers and dump bodies

Welded Cylinders

Description and Function:
Welded cylinders have their end caps welded directly to the cylinder barrel, forming a compact and durable design. These are typically used in demanding applications due to their strength and low profile.

Advantages:

• Strong, sealed structure
• Compact and space-saving
• Suitable for high-pressure environments

Disadvantages:

• Difficult to disassemble for maintenance
• Not ideal for frequently serviced systems

Typical Applications:

• Earthmoving machinery
• Heavy-duty cranes
• Industrial loaders and compact equipment

Tie Rod Cylinders

Description and Function:
Tie rod cylinders use external threaded rods to hold the end caps in place, making them easier to service and disassemble.

Advantages:

• Simple maintenance and part replacement
• Standardized components
• Commonly available and cost-effective

Disadvantages:

• Less robust for extreme-duty operations
• Bulky due to tie rods
• Potential for rod loosening in high-vibration settings

Typical Applications:

• Factory automation systems
• Material handling equipment
• Light-duty industrial machinery

Each type of hydraulic cylinder has unique structural features and performance characteristics. Choosing the correct one depends on application-specific factors such as force direction, space limitations, load requirements, and maintenance accessibility.

Crane Hydraulic Cylinders : Specific Applications

Hydraulic cylinders are essential to the functionality of cranes, providing the necessary force and control for lifting, lowering, extending, and rotating heavy loads. These cylinders are engineered to withstand high pressures, repetitive motion, and varying environmental conditions. Depending on the crane type and use case, hydraulic cylinders are tailored to meet specific mechanical and safety requirements.

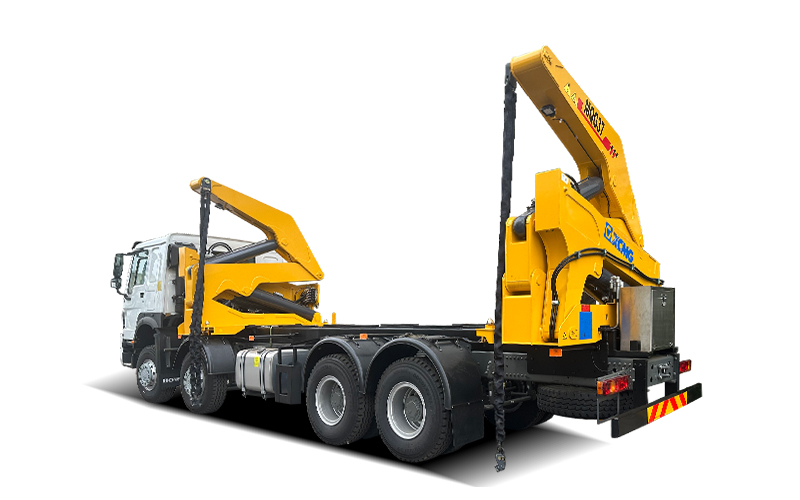

Use in Mobile Cranes

Mobile cranes, often mounted on trucks or crawler bases, rely heavily on hydraulic cylinders for boom articulation, telescoping, outrigger deployment, and load lifting. These cylinders must operate under dynamic loads and varying angles while maintaining precise control.

Key Characteristics:

• High-strength materials to support heavy lifting
• Compact, high-pressure cylinders for boom extension
• Telescopic cylinders to provide a longer reach in a compact form

Application Areas:

• Telescopic boom movement
• Outrigger extension and retraction
• Stabilization systems

Use in Overhead Cranes

Overhead cranes, typically used in industrial and manufacturing facilities, use hydraulic cylinders for hoisting and trolley motion, especially in designs where electric motors are complemented or replaced by hydraulic drives.

Key Characteristics:

• Smooth and repeatable motion control
• Compact welded cylinders to save space
• Enhanced safety and fail-safe locking mechanisms

Application Areas:

• Vertical hoisting mechanisms
• Bridge and trolley actuation
• Emergency braking or load-holding features

Use in Construction Cranes

Construction cranes, including tower cranes and rough-terrain cranes, face high structural loads and often operate in harsh outdoor conditions. Hydraulic cylinders used in these cranes must provide high load-bearing capacity, durability, and corrosion resistance.

Key Characteristics:

• Corrosion-resistant coatings for outdoor use
• Heavy-duty construction for high-cycle operation
• Seals and wipers designed for dirty or abrasive environments

Application Areas:

• Luffing and slewing mechanisms
• Telescopic boom sections
• Load handling and positioning systems

Design Considerations for Crane Cylinders

When designing or selecting hydraulic cylinders for crane applications, the following factors are typically prioritized:

• Load Bearing Capacity: Cranes often handle dynamic and fluctuating loads. Cylinders must be capable of withstanding both static and shock loads.
• Precision Control: Smooth and accurate control is vital for safety during lifting and positioning.
• Safety Requirements: Built-in locking valves, pressure relief devices, and redundant systems help prevent accidents.
• Environmental Resistance: Outdoor cranes require protection against moisture, dust, UV exposure, and temperature fluctuations.
• Serviceability: In mobile operations, the ability to inspect and maintain cylinders without significant downtime is essential.

Hydraulic cylinders in cranes are more than just actuators—they are safety-critical components that contribute to both the efficiency and reliability of lifting systems.

Heavy-Duty Hydraulic Cylinders: Specific Applications

Heavy-duty hydraulic cylinders are engineered for demanding tasks that involve extreme force, high pressure, and continuous operation. These cylinders are critical components in industries such as construction, mining, and heavy manufacturing, where equipment performance and reliability are paramount. Their robust construction and specialized design features enable them to function effectively in harsh working conditions and high-load environments.

Use in Earthmoving Equipment

Earthmoving machinery such as excavators, bulldozers, and wheel loaders depend on hydraulic cylinders for digging, lifting, pushing, and steering operations. These applications require cylinders with high output force, abrasion resistance, and long service life.

Key Roles:

• Arm, boom, and bucket articulation in excavators
• Blade lift and tilt in bulldozers
• Steering and bucket control in loaders

Design Requirements:

• Hardened surfaces to resist dirt and impact
• Heavy-wall barrels to handle high internal pressures
• Reliable seals to prevent contamination

Use in Mining Equipment

Mining operations involve large-scale, high-impact machinery such as rock crushers, drilling rigs, and haul trucks. The hydraulic cylinders used in these machines must operate under sustained high loads, resist corrosion, and withstand abrasive material exposure.

Key Roles:

• Drilling and boring operations
• Suspension systems in haul trucks
• Rock-breaking and crushing equipment

Design Requirements:

• High-pressure ratings for deep drilling
• Corrosion-resistant coatings for chemical exposure
• Extra-durable seals to handle abrasive dust

Use in Industrial Presses

Hydraulic presses used in manufacturing, metal forming, and recycling rely on hydraulic cylinders to apply immense pressure for shaping or compressing materials. These cylinders must deliver precise, consistent force across long duty cycles.

Key Roles:

• Forging and stamping applications
• Material compaction in recycling systems
• Component forming and die pressing

Design Requirements:

• Precision-ground rods for smooth actuation
• Reinforced end caps and bearings for stability
• Temperature-resistant seals for heated environments

Design Considerations for Heavy-Duty Cylinders

Selecting or designing heavy-duty hydraulic cylinders requires attention to performance, durability, and safety factors:

• Pressure Capacity: Must withstand sustained and peak pressures without deformation or leakage.
• Cycle Life: High-frequency operations demand cylinders rated for long-term durability and minimal wear.
• Material Selection: Alloy steel, heat treatment, and surface hardening are often used to enhance strength and longevity.
• Seal Technology: Advanced sealing systems prevent internal and external leakage and handle high-speed movement.
• Mounting Configuration: Mounting style must support heavy loads and allow for stable operation under high force.

Heavy-duty hydraulic cylinders are the driving force behind the power and precision of large-scale equipment. Their role is central to ensuring smooth operation, maximum output, and operator safety in some of the world’s most challenging industrial environments.

Key Considerations When Choosing a Hydraulic Cylinder

Selecting the right hydraulic cylinder is essential for achieving reliable performance, minimizing downtime, and ensuring system safety. Whether the cylinder is used in a crane, mining machine, or industrial press, several technical and environmental factors must be evaluated to match the cylinder to its application requirements.

Load Capacity

Determining the Required Load Capacity:
Load capacity refers to the maximum force a hydraulic cylinder can safely exert. This depends on the piston area and system pressure. Accurately calculating the load requirements, including static and dynamic loads, ensures the cylinder can perform without strain or failure.

Safety Factors:
A proper safety margin—typically 1.5 to 2 times the expected working load—is built into the design to compensate for unexpected stress, shock loads, and fatigue over time. Underestimating load requirements can lead to premature wear or catastrophic failure.

Operating Pressure

Matching the Cylinder to System Pressure:
Hydraulic systems operate at various pressure ranges depending on the machinery and task. Common industrial systems range from 2,000 to 5,000 psi, while specialized applications can exceed that. Cylinders must be rated to withstand not only normal operating pressure but also pressure spikes.

Pressure Ratings and Safety Margins:
Manufacturers typically list the maximum rated pressure, including built-in safety margins. It’s important to ensure all components—cylinder, seals, fittings—can handle the designated pressure without risk of leakage or bursting.

Stroke Length

Calculating the Necessary Stroke Length:
Stroke length is the distance the piston rod travels from fully retracted to fully extended. This must be carefully calculated based on the motion required by the application. Excessively long strokes in a compact design can cause rod flexing or instability.

Impact on Cylinder Design:
Longer strokes may require guides or rod supports to prevent buckling. Telescopic cylinders are often used when space constraints limit the ability to use a long single-stage cylinder.

Mounting Style

Different Mounting Options:
Hydraulic cylinders are available in several mounting configurations, including:

• Flange Mount: Offers rigid and fixed positioning, suitable for straight-line force application.
• Clevis Mount: Allows pivoting motion, ideal for linkages or where angular movement is needed.
• Trunnion Mount: Suitable for applications requiring side-to-side rotation or complex motion paths.

Selecting the Appropriate Mounting Style:
The choice depends on the movement pattern, load direction, and alignment of the machine components. Proper mounting reduces wear and prevents side loading, which can damage the cylinder and its seals.

Environmental Factors

Temperature, Corrosion, and Other Environmental Considerations:
Hydraulic cylinders may operate in extreme conditions, such as freezing temperatures, high heat, saltwater environments, or abrasive dust. These factors influence cylinder material selection, seal composition, and surface treatments.

Material Selection for Harsh Environments:

• Stainless Steel or Chrome-Plated Rods: Improve corrosion resistance
• Nickel or Epoxy Coatings: Protect against chemical exposure
• High-Temperature Seals: Maintain performance under thermal stress
• Rod Wipers and Scrapers: Keep debris out of the cylinder internals

Choosing the right hydraulic cylinder involves more than just matching dimensions. It requires a comprehensive analysis of mechanical load, system pressure, environmental exposure, motion profile, and operational safety. Investing in a well-specified cylinder helps improve system performance, extend equipment life, and reduce long-term operating costs.

Hydraulic Cylinder Maintenance

Proper maintenance is critical for ensuring the reliable performance and extended service life of hydraulic cylinders, especially in demanding environments such as construction sites, manufacturing plants, and mining operations. A well-maintained hydraulic cylinder not only reduces the risk of failure but also improves efficiency and reduces operational costs.

Regular Inspection Procedures

Routine visual and functional inspections help detect early signs of wear or malfunction. Common checks include:

• Seal Condition: Look for signs of leakage, cracking, or deformation around the rod and gland seals.
• Rod Surface: Inspect for scoring, pitting, or corrosion, which may damage internal seals or compromise cylinder operation.
• Mounting Points: Check for alignment issues, loose bolts, or signs of structural stress around mounting areas.
• Hose Connections: Ensure hydraulic lines are tight and free from leakage or abrasion.

Regular inspection should follow a defined schedule based on operational hours or calendar intervals, depending on the equipment usage.

Lubrication Best Practices

Although most hydraulic cylinders are self-lubricated by hydraulic fluid, some components—such as clevis pins or trunnion mounts—may require periodic manual lubrication.

• Use Manufacturer-Recommended Grease: Incompatible lubricants can degrade seals or affect performance.
• Clean Before Lubricating: Dirt or abrasive particles must be removed from fittings and joints before applying grease.
• Avoid Over-Lubrication: Excess grease can attract dust and debris, accelerating wear rather than preventing it.

Maintaining proper lubrication minimizes friction, enhances motion control, and prevents metal-to-metal contact that leads to premature wear.

Preventative Maintenance Tips

Preventative maintenance goes beyond reactive repairs by addressing potential issues before they lead to failure. Best practices include:

• Fluid Cleanliness: Contaminated hydraulic fluid is one of the leading causes of cylinder failure. Regularly replace filters and check fluid quality.
• Seal Replacement Cycles: Replace seals proactively during scheduled downtime to avoid unplanned outages.
• Alignment Checks: Misalignment can cause side loading, leading to uneven wear on rods and seals.
• Protective Measures: Install rod bellows or shields in environments where dust, mud, or debris are prevalent.
• Environmental Controls: Use heaters, coolers, or insulation wraps when operating in extreme temperatures to keep fluid viscosity within optimal ranges.

A preventive approach not only keeps hydraulic systems running smoothly but also contributes to operator safety and cost-effective operations.

Consistent maintenance is the foundation of hydraulic system reliability. By establishing a clear maintenance plan that includes inspections, lubrication, and preventative measures, equipment owners can significantly extend the lifespan of hydraulic cylinders and reduce the likelihood of unplanned downtime or costly failures.

Troubleshooting Common Hydraulic Cylinder Problems

Even with proper design and routine maintenance, hydraulic cylinders can experience performance issues over time. Recognizing early warning signs and understanding their root causes helps prevent small problems from escalating into costly failures. Below are some of the most common hydraulic cylinder issues and how to address them effectively.

Identifying Common Issues

1. Hydraulic Fluid Leaks:
Leaks around the rod, ports, or seals are among the most frequent problems. These may be caused by worn seals, scratches on the rod, improper installation, or excessive internal pressure.

2. Slow or Jerky Operation:
Cylinders that move erratically or slower than usual may be dealing with internal leakage, trapped air, contaminated fluid, or damaged seals.

3. Cylinder Drift:
When a cylinder extends or retracts on its own without input, it’s often due to internal bypass (fluid leaking past the piston seal), faulty valves, or incorrect system pressure.

4. Overheating:
Excessive heat generation can reduce fluid viscosity and damage seals. Causes include high system pressure, overloading, or poor heat dissipation.

5. Rod Deformation or Scoring:
A bent or scored rod indicates side loading, misalignment, or contamination. This can lead to seal damage, leaks, and eventual cylinder failure.

6. External Contamination:
Mud, dust, or chemicals on the rod surface can be pulled into the cylinder during retraction, accelerating internal wear.

Troubleshooting Steps

Step 1: Visual Inspection
Check the cylinder for visible damage, oil leaks, mounting misalignments, and contaminants. Pay special attention to the rod, seals, and fittings.

Step 2: Pressure Testing
Test the hydraulic pressure at the cylinder ports to determine whether the problem originates from the cylinder itself or the broader hydraulic system.

Step 3: Seal Evaluation
Inspect internal seals if the cylinder is disassembled. Look for flattening, cracking, swelling, or extrusion—signs that indicate fluid incompatibility or wear.

Step 4: Check Alignment and Mounting
Verify that the cylinder is properly aligned with the load direction and that mounting hardware is secure and undamaged.

Step 5: Analyze Fluid Condition
Check hydraulic fluid for discoloration, metal particles, or contamination. Dirty or degraded fluid should be replaced, and filters examined.

When to Repair vs. Replace

Repair When:

• The issue is limited to seals, bearings, or surface wear.
• Cylinder barrel and rod are structurally intact.
• Downtime and repair costs are manageable.
• A repair kit is available for the cylinder model.

Replace When:

• The rod is severely bent or scored.
• The cylinder has extensive corrosion or fatigue cracking.
• Repair costs approach or exceed replacement cost.
• Performance cannot be reliably restored through repairs.

Knowing when to repair and when to replace a cylinder is a balance between cost, time, and risk. Quick intervention and proper diagnostics can reduce overall system downtime and prevent related component damage.

Hydraulic Cylinder Repair

Over time, hydraulic cylinders may experience wear and damage that require more than routine maintenance. Repairing a hydraulic cylinder can restore its performance and extend its operational life—often at a lower cost than full replacement. Depending on the severity and nature of the issue, repairs may range from simple seal replacement to full rod re-machining or barrel reconditioning.

Basic Repair Techniques

1. Disassembly:
Begin by safely disconnecting the cylinder from the hydraulic system and removing it from the equipment. Clean the exterior thoroughly to prevent contamination. Carefully disassemble the unit, noting the orientation of components for accurate reassembly.

2. Inspection of Components:
Each component—piston, rod, seals, cylinder barrel, and gland—should be inspected for wear, deformation, corrosion, or cracks. Common inspection tools include calipers, micrometers, and dial indicators.

3. Polishing and Cleaning:
Minor scratches on rods can often be polished out using fine-grit abrasives. Cleaning internal surfaces is essential to remove metal particles, sludge, or degraded fluid residues.

4. Replacement of Worn Parts:
Damaged or worn seals, bushings, and wear rings should be replaced using manufacturer-approved kits. If the rod is pitted or bent, it may require straightening or resurfacing.

5. Reassembly and Testing:
After replacing necessary parts, reassemble the cylinder following proper torque specifications. Conduct a pressure test or cycle test to verify sealing integrity and smooth operation before reinstalling the cylinder.

Seal Replacement

Seal failure is one of the most common reasons for hydraulic cylinder malfunction. Replacing seals is typically a cost-effective repair that can restore performance and prevent leaks.

Types of Seals to Replace:

• Rod Seals: Prevent fluid from leaking out of the cylinder.

• Piston Seals: Maintain pressure between cylinder chambers.

• Wiper Seals: Remove contaminants from the rod as it retracts.

• O-rings and Backup Rings: Provide additional sealing at critical joints.

Best Practices:

• Always use seals that match original specifications.

• Clean the seal grooves and inspect for nicks or burrs before installing new seals.

• Lubricate seals with compatible hydraulic fluid before reassembly to avoid dry starts.

When to Seek Professional Repair Services

While basic repairs can be done in-house with the right tools and experience, some situations call for expert attention:

• Severe Damage: Deep scoring on rods, cracked barrels, or broken end caps often require specialized machining or welding.

• Precision Requirements: Cylinders in high-precision equipment or safety-critical applications should be repaired and tested by certified technicians.

• Custom Cylinders: Repairs for custom or uncommon cylinders may involve sourcing specialized parts or reverse-engineering components.

• Testing and Certification: Professional shops often provide post-repair testing (pressure testing, leakage checks) and offer warranties on their work.

Partnering with an experienced hydraulic repair service can reduce the risk of improper repairs and ensure that the cylinder meets OEM specifications and safety standards.

Timely and effective hydraulic cylinder repair can restore performance, reduce equipment downtime, and extend the service life of valuable machinery. Knowing which issues can be handled internally and which require professional expertise is key to managing long-term operational efficiency.

Top Hydraulic Cylinder Manufacturers

When reliability, safety, and performance are non-negotiable, choosing hydraulic cylinders from trusted manufacturers is essential. Reputable suppliers not only provide high-quality products but also offer engineering support, customization services, and global logistics capabilities. Below are some of the leading manufacturers in the hydraulic cylinder industry, recognized for their innovation, durability, and compliance with international standards.

Parker Hannifin

Overview:
Parker is a global leader in motion and control technologies, offering a wide range of hydraulic cylinders for industrial and mobile applications. Their cylinders are known for precision engineering, durability, and support for high-pressure environments.

Product Offerings:

• Heavy-duty industrial welded cylinders
• NFPA tie rod cylinders
• Custom-designed cylinders for mining, marine, and oil and gas sectors

Bosch Rexroth

Overview:
Bosch Rexroth offers a comprehensive portfolio of hydraulic actuators, including both standard and customized cylinder solutions. Their products meet international quality standards and are used in sectors such as energy, infrastructure, and heavy machinery.

Product Offerings:

• Mill-type and tie rod cylinders
• Telescopic cylinders for mobile applications
• Intelligent cylinders with integrated position sensors

Caterpillar Hydraulics

Overview:
Caterpillar manufactures heavy-duty hydraulic cylinders for its own line of construction and mining equipment, but also supplies to OEMs globally. These cylinders are engineered for durability in extreme conditions.

Product Offerings:

• Rugged cylinders for dozers, loaders, and excavators
• Long-life sealing systems and corrosion-resistant rods
• Remanufacturing and repair services

Eaton Hydraulics

Overview:
Eaton offers high-performance hydraulic cylinders tailored to mobile and industrial systems. With a strong emphasis on reliability, their cylinders are used in agriculture, marine, and aerospace industries.

Product Offerings:

• Large-bore industrial cylinders
• Compact mobile equipment cylinders
• High-speed, high-cycle actuators

Hydratech Industries

Overview:
Specializing in large-scale and custom hydraulic cylinders, Hydratech Industries serves sectors such as wind energy, offshore drilling, and heavy transport. They are known for their engineering expertise and project-specific design support.

Product Offerings:

• Large-diameter and long-stroke cylinders
• Hydraulic pitch cylinders for wind turbines
• Cylinders for offshore cranes and jacking systems

Ligon Industries

Overview:
As one of the largest North American suppliers of hydraulic cylinders, Ligon operates through a network of companies, each serving niche markets. Their flexibility and responsiveness make them a preferred supplier for custom and OEM solutions.

Product Offerings:

• Welded body and tie rod cylinders
• Telescoping cylinders for dump and refuse vehicles
• Short lead time for custom production

These manufacturers represent a cross-section of the hydraulic cylinder market, from standardized mass-production cylinders to highly customized units for complex applications. Selecting a manufacturer involves considering not only product specifications but also technical support, global service networks, and the ability to meet compliance or certification requirements.

Future Trends in Hydraulic Cylinder Technology

As industries push toward more efficient, intelligent, and environmentally conscious machinery, hydraulic cylinder technology continues to evolve. Advancements in materials, electronics integration, and design optimization are shaping the future of these critical components. Below are key trends that are expected to influence hydraulic cylinder development and application in the years ahead.

Advancements in Materials and Surface Treatments

To meet higher performance demands and extend service life, manufacturers are adopting advanced materials and surface technologies:

• High-strength Alloys: Use of heat-treated steel and composite materials increases load-bearing capacity without adding excessive weight.
• Corrosion-Resistant Coatings: Chrome alternatives like nickel-plated or ceramic-coated rods provide enhanced resistance to wear, chemicals, and environmental degradation.
• Low-Friction Liners and Seal Materials: New polymers and synthetic materials reduce energy loss and improve motion smoothness under high pressure.

These material innovations contribute to longer maintenance intervals and more reliable operation under harsh or continuous-use conditions.

Smart Hydraulic Cylinders and IoT Integration

With the growing use of Industry 4.0 technologies, hydraulic cylinders are increasingly integrated with sensors and control systems to enable real-time monitoring and automation.

• Position and Pressure Sensors: Embedded sensors provide continuous feedback on piston position, load force, and pressure, improving accuracy and safety.
• Condition Monitoring: Smart cylinders detect early signs of wear, leakage, or overload, enabling predictive maintenance and minimizing downtime.
• Remote Diagnostics: Connected cylinders transmit operational data to centralized systems for performance tracking and remote troubleshooting.

These features are especially valuable in sectors such as mining, logistics, aerospace, and automated manufacturing, where uptime and precision are mission-critical.

Energy Efficiency Improvements

Reducing energy consumption in hydraulic systems has become a priority due to rising operational costs and environmental concerns.

• Load-Sensing Hydraulics: Adaptive systems adjust fluid flow and pressure to match the load demand, reducing excess energy use.
• Lightweight Cylinder Design: Improved materials and structural optimization help reduce weight, which in turn lowers power requirements in mobile equipment.
• Electro-Hydraulic Hybrid Systems: Integration of electric drives with hydraulic actuators enhances control and reduces energy loss compared to traditional systems.

These advancements aim to make hydraulic cylinders more sustainable while maintaining or improving performance in demanding applications.

Customization and Modular Design

Modern equipment often requires tailored solutions rather than off-the-shelf components. Manufacturers are moving toward more modular, customizable cylinder designs:

• Configurable Cylinder Platforms: Customers can specify bore size, stroke length, mounting style, and sensor packages from a standardized set of options.

• Application-Specific Solutions: From compact cylinders for space-limited systems to oversized cylinders for offshore operations, customization enables better alignment with functional needs.

This shift toward modularity shortens lead times and makes high-performance solutions more accessible across industries.

Hydraulic cylinders are no longer just simple mechanical devices. As smart technologies and sustainable engineering practices become more integrated into industrial systems, hydraulic cylinders are evolving into intelligent, efficient, and application-aware components. These innovations promise to improve performance, reduce operating costs, and open new possibilities across construction, manufacturing, energy, and beyond.

Conclusion

Hydraulic cylinders are fundamental components in cranes and heavy-duty machinery, providing the linear force and precise motion required for complex lifting, pushing, and positioning tasks. Understanding the various types—such as single acting, double acting, telescopic, welded, and tie rod cylinders—helps in selecting the right solution for specific applications.

Crane hydraulic cylinders must meet rigorous demands for load capacity, safety, and environmental resistance, while heavy-duty cylinders in earthmoving, mining, and industrial presses require durability, pressure endurance, and reliable sealing. Selecting a hydraulic cylinder involves carefully considering load requirements, operating pressures, stroke length, mounting style, and environmental factors to ensure optimal performance and longevity.

Regular maintenance, including inspections, lubrication, and preventative care, plays a critical role in preventing common problems like leaks, slow operation, and rod damage. Timely troubleshooting and repairs, whether done in-house or by professional services, help avoid costly downtime and extend cylinder life.

Partnering with reputable manufacturers ensures access to quality components designed for demanding conditions and backed by technical support. Looking ahead, advancements in materials, smart sensor integration, energy efficiency, and modular design are driving the evolution of hydraulic cylinders into smarter, more efficient, and customizable solutions.

By selecting the appropriate hydraulic cylinder and maintaining it effectively, operators can enhance equipment performance, improve safety, and reduce operational costs—key factors in the success of any heavy-duty or crane application.
